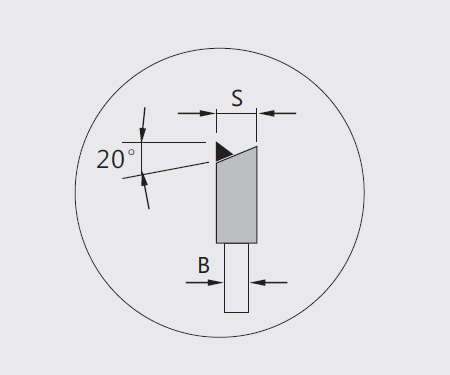

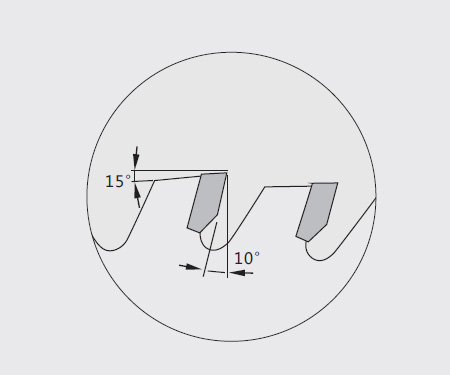

基本参数 Basic Parameters | 齿形(Tooth Shape) | 左右左右平 Alternating Group and quare tooth |
|---|
|
应用(Use for) | 有机玻璃、塑料、画框、镜框 Organic glass -Plastic/Picture frame -Mirror frame |
|---|
 编号
COD. | 外径
D | 齿宽
S | 厚度
B | 齿数
Z | | 05100 | 200 | 3.0 | 2.5 | 64 | | 05101 | 230 | 2.2 | 1.7 | 80 | | 05102 | 250 | 3.0 | 2.5 | 80 | | 05103 | 250 | 2.5 | 2.0 | 100 | | 05104 | 275 | 3.0 | 2.5 | 84 | | 05105 | 300 | 3.0 | 2.5 | 96 | | 05106 | 300 | 3.5 | 2.5 | 120 | | 05107 | 330 | 3.5 | 2.5 | 120 | | 05108 | 350 | 3.5 | 2.5 | 120 | | 05109 | 450 | 3.5 | 2.5 | 120 |
|
